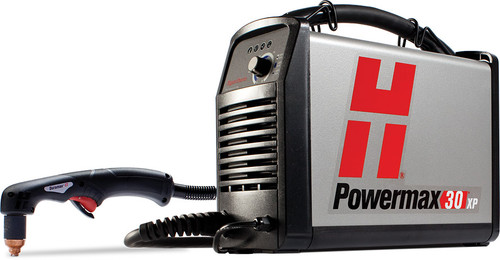

Hypertherm Powermax30 XP

0769365207

Hypertherm Powermax30 XP

0769365207
Weight:
9.70 KGS
Share

Product Description

Two-in-one design

High-power cutting up to 16 mm (5/8”) plus FineCut® consumables for detailed, thin metal cutting.

Designed to last

New Duramax LT Torch is designed to withstand impact and heat.

Easy to use

One knob interface and superior cut quality for less edge preparation.

Highly portable

Small size, light weight (only 9.8 kg) and carry strap ensure high portability.

Rugged, 4.5 m (15') torch lead

Strain reliefs on both ends provide protection in demanding environments.

Cut any kind of metal

Stainless steel, aluminum, mild steel even if rusted or painted.

Plug into 120 to 240 V power with Auto-Voltage technology

Safe

Only uses compressed air. No expensive and explosive gases needed

Operating data

Capacity Cutting Thickness Cut Speed

Recommended 10 mm (3/8") 500 mm/min (20 ipm)
  12mm (1/2") 250 mm/min (10 ipm)
Severance 16mm (5/8") 125 mm/min (5 ipm)



Understanding Plasma Technology

Powermax systems cut metal quickly, and cleanly

Plasma, and its intense heat (up to 22,000C), is created when gas is ionized by electrical energy. Powermax systems use plasma to melt metal, and compressed air or nitrogen to blow the molten metal away, leaving a good quality cut edge ready to weld in most cases. Powermax systems are also effective for gouging metal.

Cut or gouge any electrically conductive metal

Whether in a shop, factory, at home or in the field, Powermax systems cut and gouge all metal types and forms. Most models are available with a handheld or machine torch to fit the application.

Operating a plasma system requires

  • AC power source (fixed or generator)
  • Compressed air - shop air, portable air compressor or bottled air. Nitrogen is often used for stainless steel.
  • Safety equipment, including shaded glasses or face shield, gloves, protective clothing and proper ventilation

 Specifications



Input voltages

120-240 V, 1-PH, 50/60 Hz

Input current @ 3.8 kW

120-240 V, 1-PH, 25-18.8 A

Output current

15-30 A

Rated output voltage

125 VDC

Duty cycle @ 40°C (104°F)

35%, 240 V
20%, 120 V

Open circuit voltage (OCV)

256 VDC

Dimensions with handles

356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H

Weight w/ 4,5 m (15') torch

CSA: 9.7 kg (21.4 lbs)
CE, CCC: 9.5 kg (21 lbs)

Gas Supply

Clean, dry, oil-free air or nitrogen

Recommended gas inlet
flow rate / pressure

113.3 l/min (4 scfm) at 5.5 bar (80 psi)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement

5.5 kW for full 30 A output

Certifications

CSA-certified for use in the Americas and Asia, except China
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
