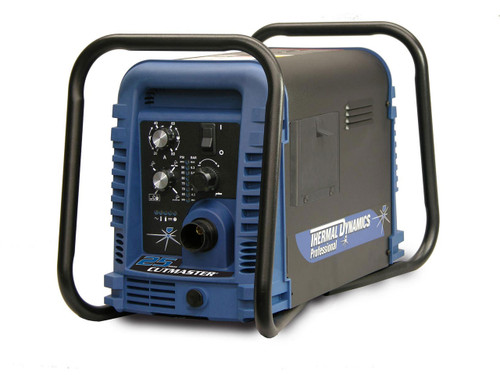

Cutmaster 25mm - Victor Technologies/Thermal Dynamics Plasma Cutter

Cutmaster 25mm - Victor Technologies/Thermal Dynamics Plasma Cutter

Weight:
20.50 KGS
Share

Product Description

The new Cutmaster True 25mm manual plasma cutter is an inverter based system specifically designed to provide excellent cutting and bevelling performance on materials up to 25mm thick. The unit is fitted with state of the art power factor correction (PFC) module that provides maximum cutting capability from a 380v 3 phase supply. The system also incorporates features such as a auto-pilot re-start. True Guard roll bar and industry renowned SL60 1 Torch for superior durability and consumable life.

These features combined with a three year limited warranty make this ideal unit for sheet metal cutting applications, auto body repairs and light fabrication.

Technical Specifications:

Genuine (True) Cut 25mm
Maximum Cut 30mm
Severance Cut 38mm
Pierce Rating 15mm













*Above cutting capacity based on mild steel.

380 volt, 3 phase 50/60Hz

Maximum Recommended Generator is 15KVA

Maximum output is 80amps

Output power is 9KW

Duty Cycle is 40% at 80amps (@40C)

Warranty 3 Years Power Source, Torch 1 YEAR (excluding consumables)

Weight 19.5kg

385H x 315W x 615L mm

Cutting Capacity Technology

Genuine (True) Cut
Cutting speed of 250mm/min with an excellent smooth cut surface and little or no dross,
with no need for grinding or rework.

Maximum Cut
Cutting speed of 150-200 mm/min with clean smooth cut surface and minor dross

Severance Cut
Cutting speed of less than 100mm/min with rippled cut surface and significant dross
